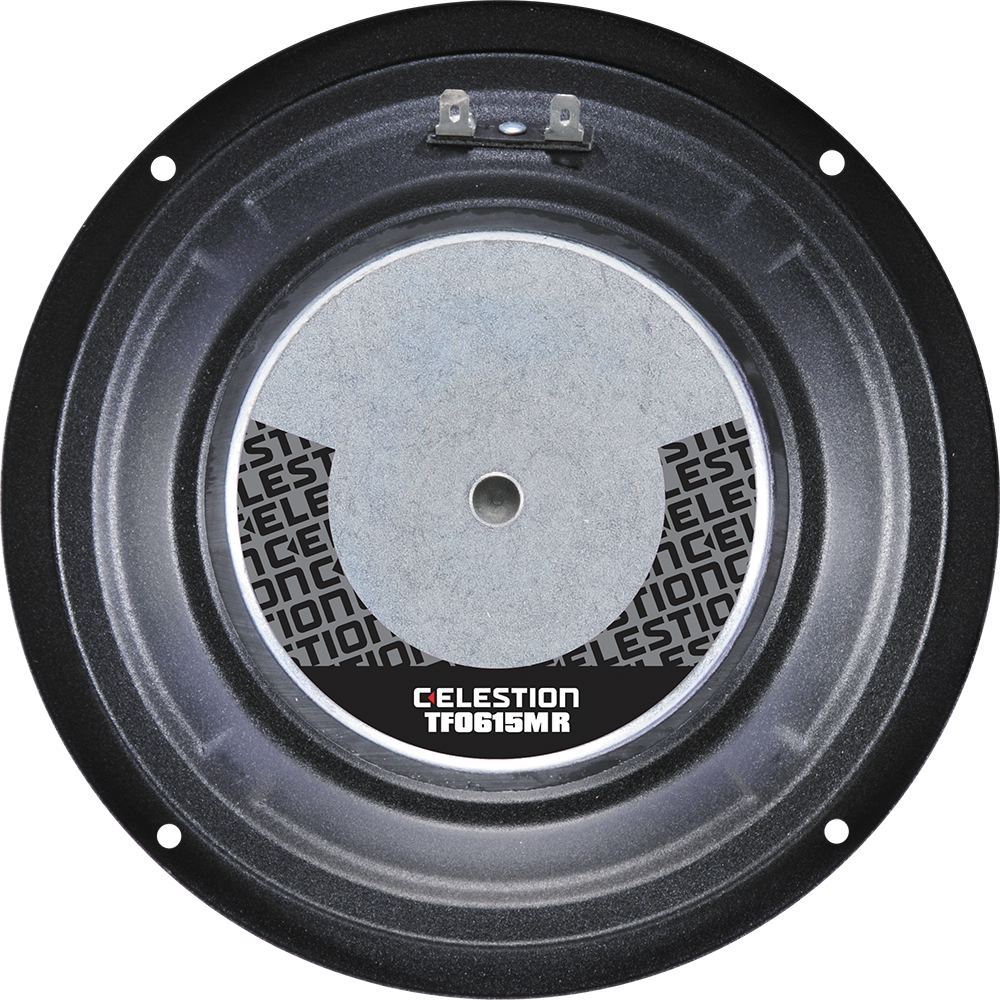

CELESTION TF0615MR
CELESTION TF0615MR — 6.5" / 6.5 Zoll · Tieftöner · Ferrit
50 W AES - 97 dB - 500 – 5000 Hz - 8 Ω
Art.-Nr.: 42A-CHS-TT-CEL-0033
Documents
CELESTION TF0615MR — 6.5" · Woofer
6.5-inch pressed steel chassis, ferrite magnet midrange driver
50 W AES · 97 dB Sensitivity · Frequency range 500 Hz – 5000 Hz
Features
- Closed back midrange unit
Technical data
- Diameter: 6.5 "
- Voice coil: 1.5 "
- Power handling: 50 W
- Programme power: 100W
- Sensitivity: 97 dB
- Impedance: 8 Ω
- Magnet: Ferrite
- Chassis: Pressed steel
- Diaphragm: Kevlar-reinforced paper
- Surround: Impregnated paper
- Suspension: Single
- Voice coil former: Polyimide
- Voice coil wire: Copper, round wire
- Weight: 1.4 kg
- Mounting depth: 74 mm
- Cut-out: 147mm / 5.79in
- Frequency range: 500 – 5000 Hz
Thiele-Small parameters
- Fs: 553 Hz
- Re: 5.53 Ω
- Le: 0.29 mH
Datasheet (PDF) · Manufacturer page
Part no.: 42A-CHS-TT-CEL-0033
Celestion TF0615MR: closed-back 6.5" midrange with 97 dB and 1.5" coil
97 dB sensitivity from a 6.5" driver: the Celestion TF0615MR is a closed-back midrange unit from the TF series, tuned for efficiency in the speech and presence region. A ferrite magnet, a 1.5" voice coil on a polyimide former and a Kevlar-loaded paper cone with an impregnated paper surround sit in a pressed steel frame with a closed rear. It handles 50 W AES (100 W programme) and covers 500 to 5000 Hz.
The closed design defines its character: the air chamber behind the cone is part of the driver, which is why resonance sits high at 553 Hz and there are no Thiele-Small parameters for enclosure tuning. What the driver offers instead is a midrange that mounts into the baffle without a chamber of its own and behaves electrically without fuss at Re 5.53 Ω and Le 0.29 mH. At 1.4 kg and 74 mm mounting depth, installation effort stays low.
Use and enclosure
The TF0615MR is intended for the midrange section of a 3-way system, typically in sound reinforcement cabinets where the woofer sits below and a compression driver or dome above. The lower crossover must sit clearly above the 553 Hz resonance; treat the manufacturer's 500 Hz limit as the end of the range, not as a crossover suggestion. With steep filters and a crossover well above Fs, the impedance curve and distortion in the hand-over region stay under control.
At the top, the useful range ends at 5000 Hz, so a tweeter has to take over before the 6.5" cone beams too strongly. The high sensitivity of 97 dB makes it easy to match the midrange to a woofer of similar sensitivity via the crossover without giving away level. Cut-out 147 mm; only 74 mm of depth is needed behind the baffle and no compartment is required.
What to look out for
- Closed rear: no midrange compartment, straight into the baffle of the 3-way box.
- Fs 553 Hz: cross over well above it, 500 Hz is the absolute lower limit.
- 97 dB at 50 W AES: high level from little amplifier power, 100 W programme is the maximum.
- 1.5" voice coil: more thermal headroom than the 1" midranges of the same series.
- Mounting depth 74 mm, cut-out 147 mm, 1.4 kg.
Frequently asked questions
Can I mount the TF0615MR right next to the woofer in the same enclosure?
Yes, that is exactly what the closed rear is for. The LF volume does not act on the cone, so no separate compartment or partition is needed. What remains important is the electrical crossover well above 553 Hz.
How does the TF0615MR match a PA woofer in level?
At 97 dB it sits at the level of many 12" and 15" PA drivers, so the crossover manages without a large voltage divider. If the woofer is quieter, the midrange is padded down with a resistor network, which is unproblematic thanks to its 8 Ω nominal impedance.
What distinguishes it from the smaller closed-back midrange of the TF series?
The TF0615MR has the larger cone, a 1.5" coil instead of 1", higher power handling and considerably more sensitivity at 97 dB. In return its range ends at 5000 Hz, whereas the five plays up to 8000 Hz and thus allows a higher crossover to the tweeter.
Celestion TF0615MR: manufacturer, spellings and classification
Celestion is the British loudspeaker manufacturer Celestion International Ltd. of Ipswich, England; its PA drivers are also known as Celestion Pro Audio. The TF0615MR is a 6.5-inch woofer with ferrite magnet from the TF series, available from 42.audio, Celestion dealer in Germany, with datasheet and full specifications in the driver database.
At 42.audio you get the CELESTION TF0615MR with all key data in the driver database and the enclosure calculator. More drivers from this manufacturer: Atlas Celestion.
Specifications
| Allgemein | |
|---|---|
| Manufacturer | CELESTION |
| Category | Low Frequency |
| Series | TF |
| Magnet | Ferrite |
| Impedance (Ω) | 8 |
| Power handling (W) | 50 |
| Sensitivity (dB) | 97 |
| Frequency from (Hz) | 500 |
| Frequency to (Hz) | 5000 |
| Abmessungen & Korb | |
|---|---|
| Diameter | 6.5 |
| Voice coil (inch) | 1.5 |
| Mounting depth (mm) | 74 |
| Weight (kg) | 1.4 |
| Thiele-Small-Parameter | |
|---|---|
| Re (Ω) | 5.53 |
| Le (mH) | 0.29 |
| Fs (Hz) | 553 |
