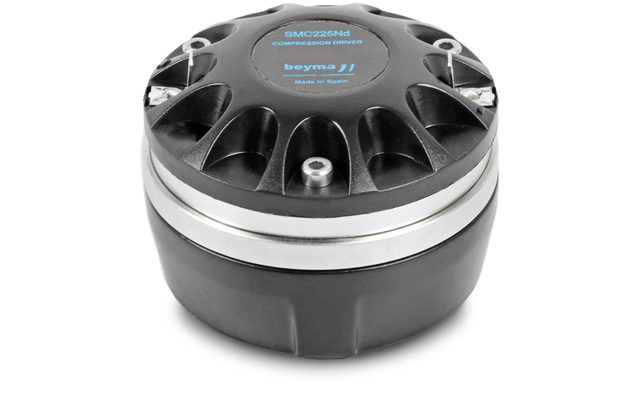

BEYMA SMC-225Nd
BEYMA SMC-225Nd — 1" / 1 inch · Compression Driver · Tweeter / HF Driver · Neodymium Magnet
40 W AES - 800 – 20000 Hz - 8 Ω
Part no.: 42A-CHS-KD-BEY-0026
Documents
BEYMA SMC-225Nd — 1" · Compression Driver · Neodymium-Magnet
40 W AES · Frequency range 800 Hz – 20000 Hz
Technical data
- Diameter: 1 "
- Voice coil: 1.75 "
- Power handling: 40 W AES
- Impedance: 8 Ω
- Magnet: Neodymium
- Weight: 0.7 kg
- Mounting depth: 57 mm
- Frequency range: 800 – 20000 Hz
Series: SMC · Part no.: 42A-CHS-KD-BEY-0026
Beyma SMC-225Nd: 1" neodymium compression driver at 0.7 kg for lightweight cabinets
Compression drivers that weigh barely more than a dome tweeter are rare. The Beyma SMC-225Nd tips the scales at 0.7 kg, which makes it a 1" driver for designs where weight and depth are tight: columns, compact monitors, installation boxes or small active speakers. Mounting depth is only 57 mm, and power handling is 40 W AES at 8 Ω.
The SMC series is Beyma's line of compact compression drivers, and the SMC-225Nd is its neodymium version with a 1.75" voice coil. The frequency range spans 800 Hz to 20,000 Hz, and the motor delivers a BL of 8 Tm. That is more motor force than you would expect at this weight, and exactly why neodymium makes so much sense in small drivers: the magnet sits right at the air gap and needs no heavy iron return path.
Use and enclosure
A two-way speaker with a medium-sized cone and a small 1" horn is the natural home of the SMC-225Nd. Suitable horns at 42.audio include the 18Sound XG10 Alu as a compact waveguide, the 18Sound XT120 or the Celestion H1-7050 ‘No Bell’; Beyma's own 1" horns are in the Horns & Waveguides category. With plastic horns the low weight is a real advantage because the horn flange is barely loaded.
The 800 Hz lower limit serves as orientation, not as a crossover frequency. At 40 W AES the high-pass belongs well above it with a steep slope, at least an octave at 24 dB/octave. That keeps diaphragm excursion in the region where the driver works cleanly and reliably. A small power amp is plenty; use a limiter in active systems and a series capacitor for protection in a passive crossover.
What to look out for
- 0.7 kg weight: barely heavier than a dome tweeter, ideal for lightweight cabinets.
- Mounting depth 57 mm: fits into shallow boxes and columns.
- Neodymium motor with BL 8 Tm: plenty of force for its size.
- 40 W AES at 8 Ω: steep high-pass well above 800 Hz.
- 1.75" voice coil: solid heat dissipation in the compact class.
Frequently asked questions
How does the SMC-225Nd differ from the SMC-280/N?
Both are 1" drivers with a 1.75" voice coil. The SMC-225Nd uses neodymium and weighs 0.7 kg, while the SMC-280/N is the ferrite version with slightly higher power handling. Where weight matters, the 225Nd is the choice.
What amplifier power is it meant for?
At 40 W AES and 8 Ω a small amplifier channel is enough. Protection matters more: a steep high-pass, a limiter in active systems and a series capacitor in the passive crossover.
Which horn fits best?
For compact cabinets a small waveguide such as the 18Sound XG10 Alu or a Beyma horn from the Horns & Waveguides category. Small horns go well with the high crossover this driver requires.
Beyma SMC-225Nd: manufacturer, spellings and classification
Beyma and Acustica Beyma refer to the same manufacturer: Acústica Beyma S.L. of Moncada near Valencia, Spain. The SMC-225Nd is a 1-inch compression driver with neodymium magnet from the SMC series, available from 42.audio, Beyma dealer in Germany, with datasheet and full specifications in the driver database.
At 42.audio you get the BEYMA SMC-225Nd with all key data in the driver database. More drivers from this manufacturer: Atlas Beyma.
Thiele-Small parameters
| Nominal impedance | 8 Ω |
|---|---|
| Resonance frequency fs | 800 Hz |
| Force factor BL | 8 Tm |
Specifications
| Allgemein | |
|---|---|
| Manufacturer | BEYMA |
| Category | Compression Driver |
| Series | SMC |
| Magnet | Neodymium |
| Impedance (Ω) | 8 |
| Power handling (W) | 40 |
| Frequency from (Hz) | 800 |
| Frequency to (Hz) | 20000 |
| Abmessungen & Korb | |
|---|---|
| Diameter | 1 |
| Voice coil (inch) | 1.75 |
| Mounting depth (mm) | 57 |
| Weight (kg) | 0.7 |
| Thiele-Small-Parameter | |
|---|---|
| Fs (Hz) | 800 |
| BL (Tm) | 8 |
