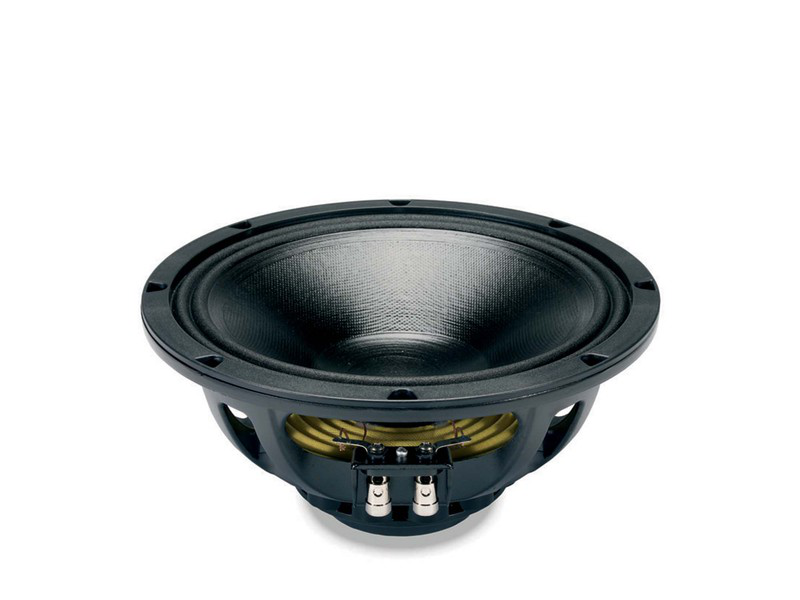

18SOUND 10NMB420

https://42.audio/web/image/product.template/11867/image_1920?unique=24e070f

18SOUND (Eighteen Sound) 10NMB420 — 10" / 10 inch · Midrange with Lower Midrange (ML) · Midrange · Neodymium
2.5" voice coil · 16 Ω
Part no.: 42A-CHS-MT-18S-0018

255.00 € 255.0 EUR 255.00 €

Price on request

inkl. MwSt. · Versandkostenfrei innerhalb Deutschlands
  • Manufacturer
  • Category
  • Series
  • Magnet
  • Impedance (Ω)
  • Power handling (W)
  • Sensitivity (dB)
  • Frequency from (Hz)
  • Frequency to (Hz)
  • Diameter
  • Voice coil (inch)
  • Mounting depth (mm)
  • Weight (kg)
  • Re (Ω)
  • Le (mH)
  • Fs (Hz)
  • Qms
  • Qes
  • Qts
  • Vas (l)
  • Xmax (mm)
  • BL (Tm)
  • Mms (kg)
  • Sd (m²)

This combination does not exist.

Contact Us
Wir melden uns innerhalb von 24 h – Angebot 48 h gültig.
Danke! Wir prüfen deinen Zielpreis und melden uns schnellstens.
  1. Home
  2. Driver shop
  3. Midrange Drivers
  4. 18SOUND 10NMB420

18SOUND 10NMB420 — 10" · Midrange Driver

350 W AES · 99 dB Sensitivity · Frequency range 65 Hz – 5000 Hz

Technical data

  • Diameter: 10 "
  • Voice coil: 2.5 "
  • Power handling: 350 W AES
  • Sensitivity: 99 dB
  • Impedance: 16 Ω
  • Magnet: Neo
  • Weight: 3 kg
  • Mounting depth: 122 mm
  • Frequency range: 65 – 5000 Hz

Datasheet (PDF) · Manufacturer page

Series: NMB · Part no.: 42A-CHS-MT-18S-0018

18Sound 10NMB420: 10" neodymium mid-woofer with 16 Ω for dual-driver cabinets

With Qts 0.33 and Fs 65 Hz the 18Sound 10NMB420 falls outside the pattern of typical PA midranges, which are usually damped much harder. The slightly softer behaviour makes it more versatile: it runs in a bass-reflex box with real low-mid output, but works just as well in the sealed midrange chamber of a three-way system. 99 dB sensitivity, 350 W AES and a 2.5" voice coil place it in the NMB series – neodymium drivers for mid and low-mid duty, here at 3 kg.

The 16 Ω impedance is a deliberate choice. Two 10NMB420 in parallel give 8 Ω, so a dual-10" top or a line-array module can run on a normal amplifier channel without pushing the load below 4 Ω. With Re 10.5 Ω and Le 0.4 mH the impedance curve stays benign across the usable range up to 5,000 Hz. BL 19.5 Tm at 31.5 g moving mass and 4 mm Xmax complete the picture of a strong motor that is not designed for deep bass.

Use and enclosure

For a bass-reflex enclosure the guideline is about 19 l tuned to 74 Hz, with a lower cutoff around 80 Hz – for a 10" low-mid section in a three-way top or as a mid-woofer in a compact two-way box supported by a subwoofer. For a sealed midrange chamber reckon with roughly 8.4 l at a corner frequency of 139 Hz; the crossover to the bass then sits well above the lower limit of 65 Hz. The EBP of 181 confirms it: bass-reflex or horn yes, deep tuning in a sealed box no. Do the exact design with the enclosure calculator at 42.audio.

The upper range to 5,000 Hz leaves plenty of freedom for the crossover to the compression driver; 122 mm mounting depth is rather generous for a 10" neodymium driver, so allow for it in the cabinet.

What to look out for

  • 16 Ω: less power from an 8 Ω amplifier when used alone, ideal in parallel pairs.
  • Qts 0.33, Vas 30 l: more flexible than typical PA midranges, bass-reflex from about 19 l possible.
  • Xmax 4 mm, 350 W AES: low mids yes, sub-bass no.
  • 3 kg, neodymium, 122 mm mounting depth: light but not shallow.
  • 99 dB: slightly less efficiency than pure midranges, but more bandwidth downwards.

Frequently asked questions

Why 16 Ω, and what does it mean for the amplifier?

On an amplifier rated for 8 Ω a single 16 Ω driver draws only about half the power. The point is parallel connection: two drivers give 8 Ω, four give 4 Ω – that is what line arrays and dual-10" boxes are built on.

How does the 10NMB420 compare with the 10MB600?

Both sit at Qts 0.33; the 10MB600 has Fs 64 Hz and Vas 27.6 l, so nearly identical enclosure requirements. The difference is the magnet: the 10NMB420 uses neodymium at 3 kg, the 10MB600 ferrite.

Does it fit a two-way box?

Yes, as a mid-woofer with subwoofer support. In a bass-reflex box of around 19 l it reaches down to about 80 Hz; without a sub the deep bass is missing below that. Upwards you cross below 5,000 Hz to the tweeter.

At 42.audio you get the 18SOUND 10NMB420 with datasheet PDF, all key data in the driver database and the enclosure calculator. More drivers from this manufacturer: Atlas 18Sound.

Thiele-Small parameters

Nominal impedance16 Ω
Resonance frequency fs65 Hz
Total Q Qts0.33
Electrical Q Qes0.36
Mechanical Q Qms4.6
Equivalent volume Vas30.0 l
Moving mass Mms31.5 g
Cone area Sd346 cm²
Linear excursion Xmax4 mm
Force factor BL19.5 Tm
DC resistance Re10.5 Ω
Voice coil inductance Le0.4 mH

Enclosure suggestion

The EBP of 181 suggests a bass-reflex enclosure. EBP = fs / Qes = 65 / 0.36

Sealed (Qtc 0.707)

Enclosure volume Vb
8.4 l
System resonance Fc
139 Hz
Cut-off frequency F3
139 Hz

Bass reflex (QB3 after Small)recommended

Enclosure volume Vb
15.5 l
Tuning frequency Fb
80 Hz
Cut-off frequency F3
87 Hz

Vb is the required net internal volume, Fb the tuning frequency of the reflex port and F3 the frequency at which the level has dropped by 3 dB. Calculated approximation after Small. A starting point for simulation, not a finished build plan.

Comparable drivers

Same size, same type, Qts within ±30 %.

Specifications

Allgemein
Manufacturer 18SOUND
Category Mid Frequency
Series NMB
Magnet Neo
Impedance (Ω) 16
Power handling (W) 350
Sensitivity (dB) 99
Frequency from (Hz) 65
Frequency to (Hz) 5000
Abmessungen & Korb
Diameter 10
Voice coil (inch) 2.5
Mounting depth (mm) 122
Weight (kg) 3
Thiele-Small-Parameter
Re (Ω) 10.5
Le (mH) 0.4
Fs (Hz) 65
Qms 4.6
Qes 0.36
Qts 0.33
Vas (l) 30
Xmax (mm) 4
BL (Tm) 19.5
Mms (kg) 0.0315
Sd (m²) 0.0346
