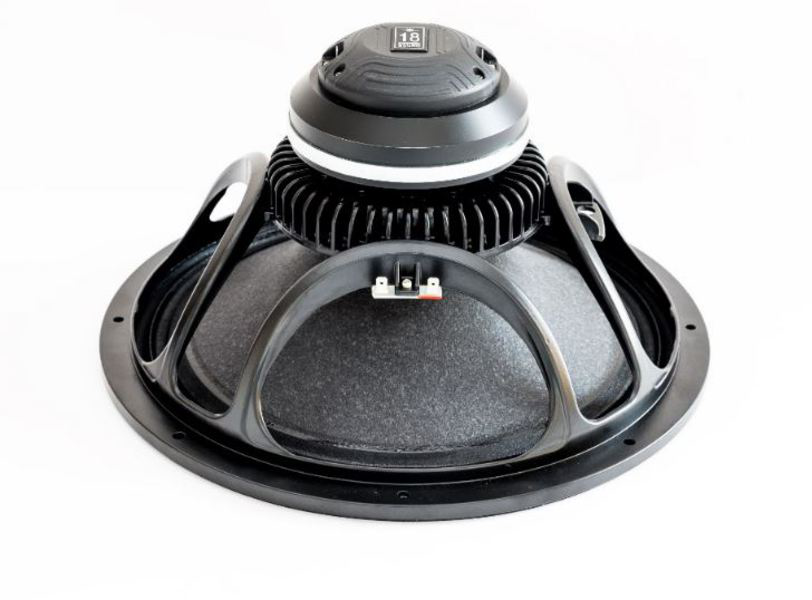

18SOUND 15NCX910

18SOUND 15NCX910

https://42.audio/web/image/product.template/11814/image_1920?unique=569f1f7

18SOUND (Eighteen Sound) 15NCX910 — 15" / 15 inch Coaxial Driver · Coax / Coaxial Driver · Neodymium
3"/3" voice coils · 8 Ω
Part no.: 42A-CHS-KO-18S-0011

635.00 € 635.0 EUR 635.00 €

Price on request

inkl. MwSt., zzgl. Versandkosten
  • Manufacturer
  • Category
  • Series
  • Magnet
  • Impedance (Ω)
  • Power handling (W)
  • Sensitivity (dB)
  • Frequency from (Hz)
  • Frequency to (Hz)
  • Diameter
  • Voice coil (inch)
  • Mounting depth (mm)
  • Weight (kg)
  • Re (Ω)
  • Le (mH)
  • Fs (Hz)
  • Qms
  • Qes
  • Qts
  • Vas (l)
  • Xmax (mm)
  • BL (Tm)
  • Mms (kg)
  • Sd (m²)

This combination does not exist.

Contact Us
Wir melden uns innerhalb von 24 h – Angebot 48 h gültig.
Danke! Wir prüfen deinen Zielpreis und melden uns schnellstens.
  1. Home
  2. Driver shop
  3. Coaxial Drivers
  4. 18SOUND 15NCX910

18SOUND 15NCX910 — 15" · Coaxial Driver

450 W AES · 99.5 dB Sensitivity · Frequency range 50 Hz – 4000 Hz

Technical data

  • Diameter: 15 "
  • Voice coil: 3 "
  • Power handling: 450 W AES
  • Sensitivity: 99.5 dB
  • Impedance: 8 Ω
  • Magnet: Neodymium
  • Weight: 6.5 kg
  • Mounting depth: 205 mm
  • Frequency range: 50 – 4000 Hz
  • Coverage angle: 80 °
  • Rec. crossover: 1.2 kHz

Datasheet (PDF) · Manufacturer page

Series: NCX · Part no.: 42A-CHS-KO-18S-0011

Thiele-Small parameters

Nominal impedance8 Ω
Resonance frequency fs55 Hz
Total Q Qts0.33
Electrical Q Qes0.34
Mechanical Q Qms8.2
Equivalent volume Vas107.0 l
Moving mass Mms86.0 g
Cone area Sd881 cm²
Linear excursion Xmax7 mm
Force factor BL21 Tm
DC resistance Re5 Ω
Voice coil inductance Le1.1 mH

Enclosure suggestion

The EBP of 162 suggests a bass-reflex enclosure. EBP = fs / Qes = 55 / 0.34

Sealed (Qtc 0.707)

Enclosure volume Vb
29.8 l
System resonance Fc
118 Hz
Cut-off frequency F3
118 Hz

Bass reflex (QB3 after Small)recommended

Enclosure volume Vb
55.1 l
Tuning frequency Fb
68 Hz
Cut-off frequency F3
74 Hz

Vb is the required net internal volume, Fb the tuning frequency of the reflex port and F3 the frequency at which the level has dropped by 3 dB. Calculated approximation after Small. A starting point for simulation, not a finished build plan.

Comparable drivers

Same size, same type, Qts within ±30 %.

Specifications

Allgemein
Manufacturer 18SOUND
Category Coaxial
Series NCX
Magnet Neodymium
Impedance (Ω) 8
Power handling (W) 450
Sensitivity (dB) 99.5
Frequency from (Hz) 50
Frequency to (Hz) 4000
Abmessungen & Korb
Diameter 15
Voice coil (inch) 3
Mounting depth (mm) 205
Weight (kg) 6.5
Thiele-Small-Parameter
Re (Ω) 5
Le (mH) 1.1
Fs (Hz) 55
Qms 8.2
Qes 0.34
Qts 0.33
Vas (l) 107
Xmax (mm) 7
BL (Tm) 21
Mms (kg) 0.086
Sd (m²) 0.0881
