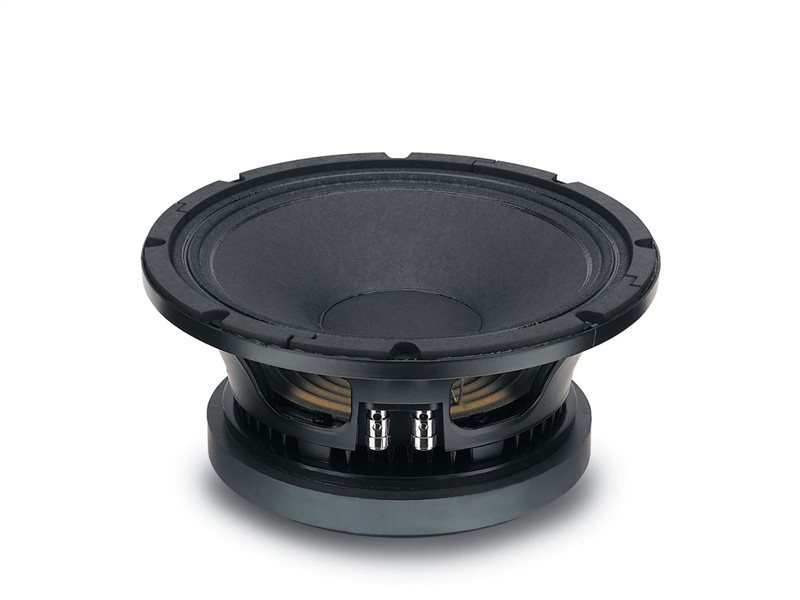

18SOUND 10M600
18SOUND (Eighteen Sound) 10M600 — 10" / 10 inch · Midrange with Lower Midrange (ML) · Midrange · Ferrite
3" voice coil · 8 Ω
Part no.: 42A-CHS-MT-18S-0007
Documents
18SOUND 10M600 — 10" · Midrange Driver
400 W AES · 102 dB Sensitivity · Frequency range 80 Hz – 5200 Hz
Technical data
- Diameter: 10 "
- Voice coil: 3 "
- Power handling: 400 W AES
- Sensitivity: 102 dB
- Impedance: 8 Ω
- Magnet: Ferrite
- Weight: 7.35 kg
- Mounting depth: 126 mm
- Frequency range: 80 – 5200 Hz
Datasheet (PDF) · Manufacturer page
Series: M · Part no.: 42A-CHS-MT-18S-0007
18Sound 10M600: 10" ferrite midrange with 3" coil, 102 dB and 400 W AES
A 10" midrange with ferrite magnet, 3" voice coil and 400 W AES – the 18Sound 10M600 from the M series is built for the midband of large three-way systems, where a 12" or 18" woofer covers the low mids and a driver above it fills the range up to the compression driver with high efficiency. 102 dB sensitivity at 8 Ω puts it on the level of horn systems without needing a horn itself.
The Thiele-Small parameters show its character: Fs 70 Hz, Qts 0.23, Vas 25.6 l, BL 17.6 Tm with only 32 g moving mass. This is a heavily damped, powerful motor with an EBP of 280 – a figure that clearly points to bass-reflex or horn operation and against deep bass in a sealed box. Xmax is 4 mm, enough for low mids from about 80 Hz with a suitable high-pass, but not for bass duty. The usable range extends to 5,200 Hz, so the handover to a 1" or 2" compression driver can be chosen freely according to the horn.
Use and enclosure
As a guideline for a bass-reflex enclosure you get roughly 5.7 l tuned to 110 Hz, giving a lower cutoff around 142 Hz; sealed it is about 3.0 l with a corner frequency of 215 Hz. Both are approximations from the TS parameters – fine-tune with the enclosure calculator at 42.audio. In practice this means: a small sealed midrange chamber is the uncomplicated choice when the transition to the bass sits at around 215 Hz or above; if you want to cross lower and use the low mids from 80 Hz, take the small reflex chamber and cross with a steep high-pass above the tuning frequency.
Upwards the 10M600 is specified to 5,200 Hz. Because of the 1.28 mH inductance the impedance does not stay flat but rises in the upper mids – plan a Zobel network in passive crossovers or cross actively. With 3" coil and 400 W AES it handles the dynamics of professional sound reinforcement; 7.35 kg and 126 mm mounting depth need to be planned into the cabinet.
What to look out for
- 8 Ω, 102 dB: very loud, in three-way systems usually needs attenuation relative to the bass.
- Fs 70 Hz, Qts 0.23, EBP 280: bass-reflex or sealed midrange chamber, no deep bass.
- Xmax 4 mm: high-pass mandatory, low mids from 80 Hz only with steep filtering.
- Le 1.28 mH: impedance rise in the upper mids, compensate in passive crossovers.
- 7.35 kg and 126 mm mounting depth: ferrite magnet, correspondingly heavy.
Frequently asked questions
Where do I cross the 10M600 at the bottom and top?
At the bottom well above 80 Hz; in a sealed chamber of about 3 l the corner frequency is 215 Hz, a sensible anchor for the high-pass. At the top there is room up to 5,200 Hz; set the crossover to the tweeter below that, depending on horn and driver.
How does the 10M600 differ from the 10NDA610?
The 10NDA610 uses neodymium, weighs less, is designed with Fs 89 Hz and Vas 18 l as a pure midrange without low-mid ambitions and is 1 dB more sensitive. The 10M600 goes lower with Fs 70 Hz and 4 mm Xmax and is the ferrite alternative when weight does not matter.
Which amplifier fits?
A channel with 400 W into 8 Ω uses the full power handling; in the midband less is often enough, because music carries less energy there than in the bass. More important is a limiter or an active crossover that sets the high-pass cleanly.
18Sound 10M600: manufacturer, spellings and classification
18Sound, 18 Sound and Eighteensound all refer to the same manufacturer: Eighteen Sound S.r.l. of Reggio Emilia, Italy. The 10M600 is a 10-inch midrange driver with ferrite magnet from the M series, available from 42.audio, 18Sound dealer in Germany, with datasheet and full specifications in the driver database.
At 42.audio you get the 18SOUND 10M600 with datasheet PDF, all key data in the driver database and the enclosure calculator. More drivers from this manufacturer: Atlas 18Sound.
Thiele-Small parameters
| Nominal impedance | 8 Ω |
|---|---|
| Resonance frequency fs | 70 Hz |
| Total Q Qts | 0.23 |
| Electrical Q Qes | 0.25 |
| Mechanical Q Qms | 4.5 |
| Equivalent volume Vas | 25.6 l |
| Moving mass Mms | 32.0 g |
| Cone area Sd | 350 cm² |
| Linear excursion Xmax | 4 mm |
| Force factor BL | 17.6 Tm |
| DC resistance Re | 5.2 Ω |
| Voice coil inductance Le | 1.28 mH |
Comparable drivers
Same size, same type, Qts within ±30 %.
- B&C Speakers 10FW64fs 63 Hz · Qts 0.23 · Vas 27 l · in the database
- FaitalPRO 10PR410fs 60 Hz · Qts 0.23 · Vas 32 l · in the database
- 18 Sound 10NDA610fs 89 Hz · Qts 0.23 · Vas 18 l · in the shop
- FaitalPRO 10HP1020fs 60 Hz · Qts 0.24 · Vas 16.1 l · in the database
- B&C Speakers 10MD26fs 76 Hz · Qts 0.21 · Vas 20 l · in the database
- B&C Speakers 10NDL88fs 61 Hz · Qts 0.25 · Vas 18.4 l · in the database
Specifications
| Allgemein | |
|---|---|
| Manufacturer | 18SOUND |
| Category | Mid Frequency |
| Series | M |
| Magnet | Ferrite |
| Impedance (Ω) | 8 |
| Power handling (W) | 400 |
| Sensitivity (dB) | 102 |
| Frequency from (Hz) | 80 |
| Frequency to (Hz) | 5200 |
| Abmessungen & Korb | |
|---|---|
| Diameter | 10 |
| Voice coil (inch) | 3 |
| Mounting depth (mm) | 126 |
| Weight (kg) | 7.35 |
| Thiele-Small-Parameter | |
|---|---|
| Re (Ω) | 5.2 |
| Le (mH) | 1.28 |
| Fs (Hz) | 70 |
| Qms | 4.5 |
| Qes | 0.25 |
| Qts | 0.23 |
| Vas (l) | 25.6 |
| Xmax (mm) | 4 |
| BL (Tm) | 17.6 |
| Mms (kg) | 0.032 |
| Sd (m²) | 0.035 |
