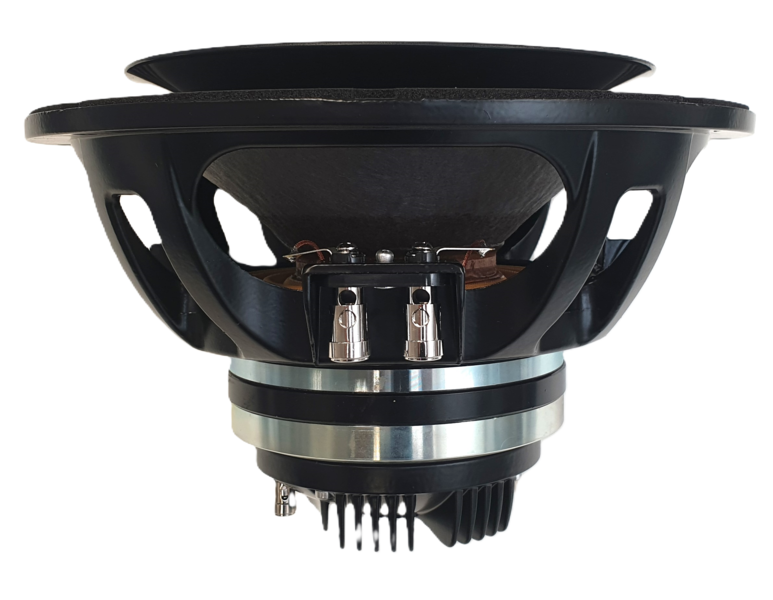

18SOUND 10NCX750H
18SOUND (Eighteen Sound) 10NCX750H — 10" / 10 inch Coaxial Driver · Coax / Coaxial Driver · Neodymium
3"/2.4" voice coils · 8 Ω
Part no.: 42A-CHS-KO-18S-0005
Documents
18SOUND 10NCX750H — 10" · Coaxial Driver
350 W AES · 95 dB Sensitivity · Frequency range 60 Hz – 1500 Hz
Technical data
- Diameter: 10 "
- Voice coil: 3 "
- Power handling: 350 W AES
- Sensitivity: 95 dB
- Impedance: 8 Ω
- Magnet: Neodymium
- Weight: 4.25 kg
- Mounting depth: 148 mm
- Frequency range: 60 – 1500 Hz
- Cone material: Titanium
- Coverage angle: 50x70 °
- Rec. crossover: 1.2 kHz
Datasheet (PDF) · Manufacturer page
Series: NCX · Part no.: 42A-CHS-KO-18S-0005
Thiele-Small parameters
| Nominal impedance | 8 Ω |
|---|---|
| Resonance frequency fs | 65 Hz |
| Total Q Qts | 0.25 |
| Electrical Q Qes | 0.26 |
| Mechanical Q Qms | 8.4 |
| Equivalent volume Vas | 21.7 l |
| Moving mass Mms | 47.0 g |
| Cone area Sd | 346 cm² |
| Linear excursion Xmax | 5.5 mm |
| Force factor BL | 19.8 Tm |
| DC resistance Re | 5.3 Ω |
| Voice coil inductance Le | 0.54 mH |
Comparable drivers
Same size, same type, Qts within ±30 %.
Specifications
| Allgemein | |
|---|---|
| Manufacturer | 18SOUND |
| Category | Coaxial |
| Series | NCX |
| Magnet | Neodymium |
| Impedance (Ω) | 8 |
| Power handling (W) | 350 |
| Sensitivity (dB) | 95 |
| Frequency from (Hz) | 60 |
| Frequency to (Hz) | 1500 |
| Abmessungen & Korb | |
|---|---|
| Diameter | 10 |
| Voice coil (inch) | 3 |
| Mounting depth (mm) | 148 |
| Weight (kg) | 4.25 |
| Thiele-Small-Parameter | |
|---|---|
| Re (Ω) | 5.3 |
| Le (mH) | 0.54 |
| Fs (Hz) | 65 |
| Qms | 8.4 |
| Qes | 0.26 |
| Qts | 0.25 |
| Vas (l) | 21.7 |
| Xmax (mm) | 5.5 |
| BL (Tm) | 19.8 |
| Mms (kg) | 0.047 |
| Sd (m²) | 0.0346 |
