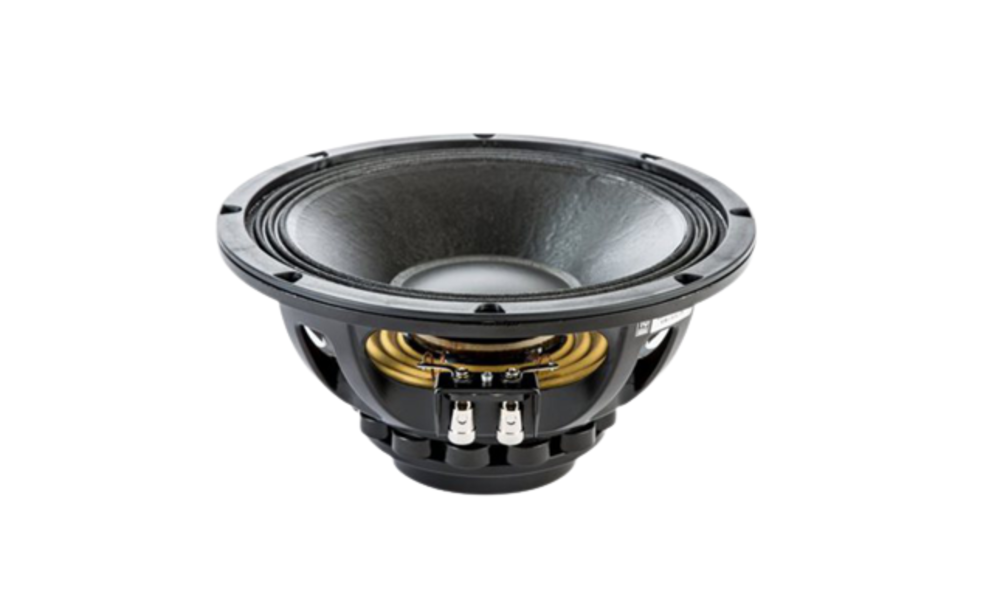

18SOUND 10NW750

18SOUND 10NW750

https://42.audio/web/image/product.template/11865/image_1920?unique=25ecb2b

18SOUND (Eighteen Sound) 10NW750 — 10" / 10 inch · Woofer/Midrange (W/ML) · Bass · Neodymium
3" voice coil · 8/16 Ω
Part no.: 42A-CHS-TT-18S-0071

303.00 € 303.0 EUR 303.00 €

Price on request

inkl. MwSt., zzgl. Versandkosten
  • Manufacturer
  • Category
  • Series
  • Magnet
  • Impedance (Ω)
  • Power handling (W)
  • Sensitivity (dB)
  • Frequency from (Hz)
  • Frequency to (Hz)
  • Diameter
  • Voice coil (inch)
  • Mounting depth (mm)
  • Weight (kg)
  • Re (Ω)
  • Le (mH)
  • Fs (Hz)
  • Qms
  • Qes
  • Qts
  • Vas (l)
  • Xmax (mm)
  • BL (Tm)
  • Mms (kg)
  • Sd (m²)

This combination does not exist.

Contact Us
Wir melden uns innerhalb von 24 h – Angebot 48 h gültig.
Danke! Wir prüfen deinen Zielpreis und melden uns schnellstens.
  1. Home
  2. Driver shop
  3. Woofers
  4. 18SOUND 10NW750

18SOUND 10NW750 — 10" · Woofer

450 W AES · 94 dB Sensitivity · Frequency range 50 Hz – 5000 Hz

Technical data

  • Diameter: 10 "
  • Voice coil: 3 "
  • Power handling: 450 W AES
  • Sensitivity: 94 dB
  • Impedance: 8 Ω
  • Magnet: Neo
  • Weight: 3.8 kg
  • Mounting depth: 130 mm
  • Frequency range: 50 – 5000 Hz

Datasheet (PDF) · Manufacturer page

Series: NW · Part no.: 42A-CHS-TT-18S-0071

Thiele-Small parameters

Nominal impedance8 Ω
Resonance frequency fs53 Hz
Total Q Qts0.31
Electrical Q Qes0.32
Mechanical Q Qms5.74
Equivalent volume Vas34.0 l
Moving mass Mms45.0 g
Cone area Sd340 cm²
Linear excursion Xmax7.5 mm
Force factor BL16.4 Tm
DC resistance Re5.8 Ω
Voice coil inductance Le0.6 mH

Enclosure suggestion

The EBP of 166 suggests a bass-reflex enclosure. EBP = fs / Qes = 53 / 0.32

Sealed (Qtc 0.707)

Enclosure volume Vb
8.1 l
System resonance Fc
121 Hz
Cut-off frequency F3
121 Hz

Bass reflex (QB3 after Small)recommended

Enclosure volume Vb
14.3 l
Tuning frequency Fb
69 Hz
Cut-off frequency F3
78 Hz

Vb is the required net internal volume, Fb the tuning frequency of the reflex port and F3 the frequency at which the level has dropped by 3 dB. Calculated approximation after Small. A starting point for simulation, not a finished build plan.

Comparable drivers

Same size, same type, Qts within ±30 %.

Specifications

Allgemein
Manufacturer 18SOUND
Category Low Frequency
Series NW
Magnet Neo
Impedance (Ω) 8
Power handling (W) 450
Sensitivity (dB) 94
Frequency from (Hz) 50
Frequency to (Hz) 5000
Abmessungen & Korb
Diameter 10
Voice coil (inch) 3
Mounting depth (mm) 130
Weight (kg) 3.8
Thiele-Small-Parameter
Re (Ω) 5.8
Le (mH) 0.6
Fs (Hz) 53
Qms 5.74
Qes 0.32
Qts 0.31
Vas (l) 34
Xmax (mm) 7.5
BL (Tm) 16.4
Mms (kg) 0.045
Sd (m²) 0.034
