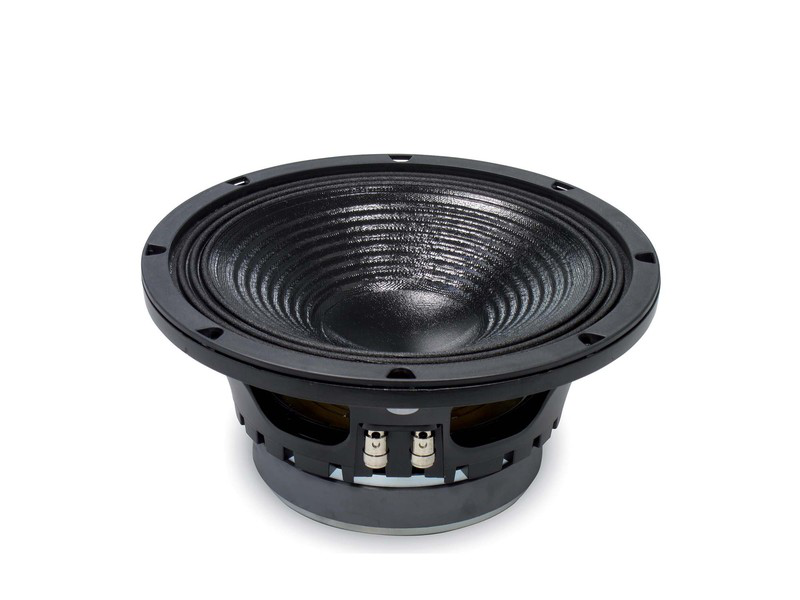

18SOUND 10W500

https://42.audio/web/image/product.template/11765/image_1920?unique=24e070f

18SOUND (Eighteen Sound) 10W500 — 10" / 10 inch · Woofer/Midrange (WM) · Bass · Ferrite
2" voice coil · 8 Ω
Part no.: 42A-CHS-TT-18S-0026

175.00 € 175.0 EUR 175.00 €

Price on request

inkl. MwSt. · Versandkostenfrei innerhalb Deutschlands
  • Manufacturer
  • Category
  • Series
  • Magnet
  • Impedance (Ω)
  • Power handling (W)
  • Sensitivity (dB)
  • Frequency from (Hz)
  • Frequency to (Hz)
  • Diameter
  • Voice coil (inch)
  • Mounting depth (mm)
  • Weight (kg)
  • Re (Ω)
  • Le (mH)
  • Fs (Hz)
  • Qms
  • Qes
  • Qts
  • Vas (l)
  • Xmax (mm)
  • BL (Tm)
  • Mms (kg)
  • Sd (m²)

This combination does not exist.

Contact Us
Wir melden uns innerhalb von 24 h – Angebot 48 h gültig.
Danke! Wir prüfen deinen Zielpreis und melden uns schnellstens.
  1. Home
  2. Driver shop
  3. Woofers
  4. 18SOUND 10W500

18SOUND 10W500 — 10" · Woofer

280 W AES · 98 dB Sensitivity · Frequency range 55 Hz – 4500 Hz

Technical data

  • Diameter: 10 "
  • Voice coil: 2 "
  • Power handling: 280 W AES
  • Sensitivity: 98 dB
  • Impedance: 8 Ω
  • Magnet: Ferrite
  • Weight: 4.7 kg
  • Mounting depth: 121 mm
  • Frequency range: 55 – 4500 Hz

Datasheet (PDF) · Manufacturer page

Series: W · Part no.: 42A-CHS-TT-18S-0026

18Sound 10W500: 10" ferrite mid-woofer with 98 dB and 280 W AES

98 dB sensitivity from a 10" driver with a ferrite magnet and a 2" voice coil: the 18Sound 10W500 from the W series is built for efficiency. A light cone with only 33 g of moving mass and a motor with BL of 14.6 Tm make it a woofer/midrange that produces a lot of level from little amplifier power. The 280 W AES rating is down to the 2" coil, and at 98 dB it is enough for most tops and monitors.

The parameters are classic vented-box material: Fs 53 Hz, Qts 0.29 and Vas 45.2 l. The relatively high compliance brings extension, the well damped motor keeps control. The frequency range runs from 55 to 4,500 Hz, Xmax is 5.5 mm. At 4.7 kg the driver is not heavy for ferrite, and the mounting depth of 121 mm stays moderate. The datasheet PDF is attached to the product.

Use and enclosure

The vented guide value is 19 l with fb 68 Hz and f3 78 Hz. At that size the 10W500 is a good candidate for compact 2-way tops and stage monitors that have to run without a subwoofer. The crossover to the tweeter can sit high thanks to the 4,500 Hz upper limit and the low inductance of 0.72 mH; a 1" compression driver on a horn from the 18Sound range is the typical partner. The EBP of 171 shows that a sealed box of 9.1 l at fc 129 Hz only makes sense as a midrange chamber.

With Xmax of 5.5 mm, excursion is the limiting factor at very high bass levels, so set the high-pass above 55 Hz when running with a subwoofer. Comparable in parameters are the B&C 10PS26 with Fs 54 Hz, Qts 0.29 and Vas 38 l and the FaitalPRO 10PR320 with Fs 48 Hz, Qts 0.29 and Vas 52.7 l; the neodymium 18Sound 10NW650 is the lighter alternative from the same manufacturer. All of them are in the driver database at 42.audio.

What to look out for

  • 98 dB sensitivity: little amplifier power needed, 280 W AES goes a long way.
  • 2" voice coil: thermally limited, a limiter is advisable for continuous use.
  • Xmax 5.5 mm: high-pass above 55 Hz at high levels.
  • Ferrite, 4.7 kg: rugged and affordable, uncritical for fixed installation.
  • 8 Ω, Re 6 Ω: standard load, multiple units in parallel at 4 Ω.

Frequently asked questions

Is the 10W500 suitable for a stage monitor?

Yes, 98 dB sensitivity and a compact vented box of about 19 l as a guide value are ideal for monitors. The crossover to the horn can be placed flexibly thanks to the 4,500 Hz upper limit.

How much power does the 10W500 need?

Little. At 98 dB an amplifier well below 280 W into 8 Ω already delivers high levels. The 2" coil does not tolerate sustained overload, so use a limiter and a high-pass.

10W500 or 10NW650, which fits better?

The 10W500 has more efficiency at 98 dB and a ferrite magnet at 4.7 kg. The neodymium 10NW650 weighs less, has similar parameters with Fs 51 Hz and Qts 0.28, and is the lighter choice for mobile tops.

18Sound 10W500: manufacturer, spellings and classification

18Sound, 18 Sound and Eighteensound all refer to the same manufacturer: Eighteen Sound S.r.l. of Reggio Emilia, Italy. The 10W500 is a 10-inch woofer with ferrite magnet from the W series, available from 42.audio, 18Sound dealer in Germany, with datasheet and full specifications in the driver database.

At 42.audio you get the 18SOUND 10W500 with datasheet PDF, all key data in the driver database and the enclosure calculator. More drivers from this manufacturer: Atlas 18Sound.

Thiele-Small parameters

Nominal impedance8 Ω
Resonance frequency fs53 Hz
Total Q Qts0.29
Electrical Q Qes0.31
Mechanical Q Qms4.22
Equivalent volume Vas45.2 l
Moving mass Mms33.0 g
Cone area Sd350 cm²
Linear excursion Xmax5.5 mm
Force factor BL14.6 Tm
DC resistance Re6 Ω
Voice coil inductance Le0.72 mH

Enclosure suggestion

The EBP of 171 suggests a bass-reflex enclosure. EBP = fs / Qes = 53 / 0.31

Sealed (Qtc 0.707)

Enclosure volume Vb
9.1 l
System resonance Fc
129 Hz
Cut-off frequency F3
129 Hz

Bass reflex (QB3 after Small)recommended

Enclosure volume Vb
15.2 l
Tuning frequency Fb
74 Hz
Cut-off frequency F3
86 Hz

Vb is the required net internal volume, Fb the tuning frequency of the reflex port and F3 the frequency at which the level has dropped by 3 dB. Calculated approximation after Small. A starting point for simulation, not a finished build plan.

Comparable drivers

Same size, same type, Qts within ±30 %.

Specifications

Allgemein
Manufacturer 18SOUND
Category Low Frequency
Series W
Magnet Ferrite
Impedance (Ω) 8
Power handling (W) 280
Sensitivity (dB) 98
Frequency from (Hz) 55
Frequency to (Hz) 4500
Abmessungen & Korb
Diameter 10
Voice coil (inch) 2
Mounting depth (mm) 121
Weight (kg) 4.7
Thiele-Small-Parameter
Re (Ω) 6
Le (mH) 0.72
Fs (Hz) 53
Qms 4.22
Qes 0.31
Qts 0.29
Vas (l) 45.2
Xmax (mm) 5.5
BL (Tm) 14.6
Mms (kg) 0.033
Sd (m²) 0.035
