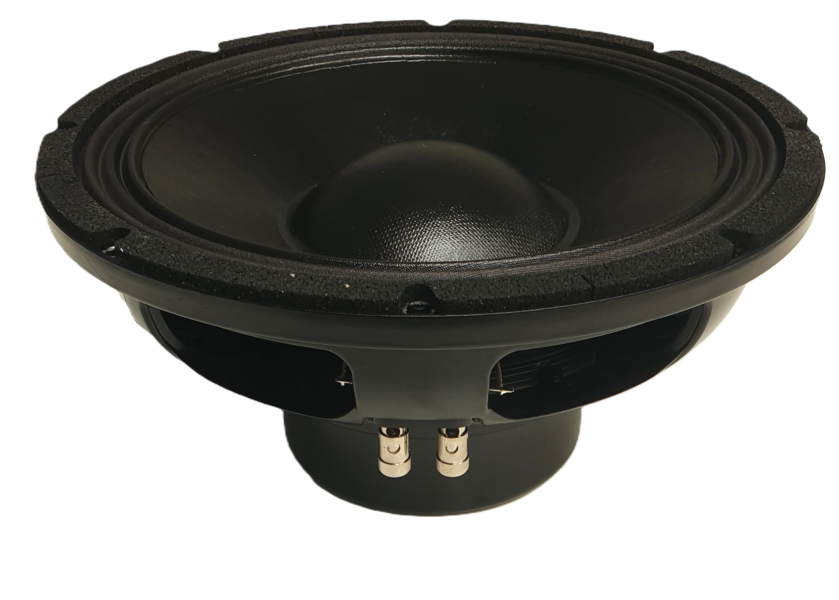

18SOUND 12NLW9410

https://42.audio/web/image/product.template/11849/image_1920?unique=24e070f

18SOUND (Eighteen Sound) 12NLW9410 — 12" / 12 inch · High-Performance Woofer · Bass · Neodymium
4" voice coil · 8 Ω
Part no.: 42A-CHS-TT-18S-0062

399.00 € 399.0 EUR 399.00 €

Price on request

inkl. MwSt. · Versandkostenfrei innerhalb Deutschlands
  • Manufacturer
  • Category
  • Series
  • Magnet
  • Impedance (Ω)
  • Power handling (W)
  • Sensitivity (dB)
  • Frequency from (Hz)
  • Frequency to (Hz)
  • Diameter
  • Voice coil (inch)
  • Mounting depth (mm)
  • Weight (kg)
  • Re (Ω)
  • Le (mH)
  • Fs (Hz)
  • Qms
  • Qes
  • Qts
  • Vas (l)
  • Xmax (mm)
  • BL (Tm)
  • Mms (kg)
  • Sd (m²)

This combination does not exist.

Contact Us
Wir melden uns innerhalb von 24 h – Angebot 48 h gültig.
Danke! Wir prüfen deinen Zielpreis und melden uns schnellstens.
  1. Home
  2. Driver shop
  3. Woofers
  4. 18SOUND 12NLW9410

18SOUND 12NLW9410 — 12" · Woofer

1000 W AES · 95 dB Sensitivity · Frequency range 45 Hz – 3000 Hz

Technical data

  • Diameter: 12 "
  • Voice coil: 4 "
  • Power handling: 1000 W AES
  • Sensitivity: 95 dB
  • Impedance: 8 Ω
  • Magnet: Neo
  • Weight: 7.3 kg
  • Mounting depth: 143 mm
  • Frequency range: 45 – 3000 Hz

Datasheet (PDF) · Manufacturer page

Series: NLW · Part no.: 42A-CHS-TT-18S-0062

18Sound 12NLW9410: high-performance woofer with 1,000 W AES and 11 mm Xmax

The 18Sound 12NLW9410 is the powerhouse among the 12" drivers in this series: 1,000 W AES through a 4" voice coil, 11 mm Xmax and a 21.7 Tm motor. The neodymium woofer is classed as a high-performance woofer rather than a woofer/midrange – a driver that stays clean in the bass at high levels.

The parameters fit the picture: Fs 42 Hz, Qts 0.26, Vas 55 l and a moving mass of 105 g – heavier than the efficiency-oriented models, but with more excursion and power handling. The 95 dB sensitivity is the price for the extra cone mass, one you gladly pay with a 1,000 W rating. The frequency range runs from 45 to 3,000 Hz, and the driver weighs 7.3 kg.

Use and enclosure

With an EBP of 156 bass reflex is the logical choice. The guideline is 17 l net tuned to 59 Hz with an f3 around 72 Hz – a compact enclosure that allows very high levels with 1,000 W and 11 mm Xmax. That is exactly the recipe for a small, loud top or a bandpass design. Sealed, you get 8.6 l with a 114 Hz system resonance. Use the enclosure calculator on 42.audio for the precise alignment.

The 3,000 Hz upper limit and the 1.07 mH inductance suggest a crossover to the tweeter in the lower midrange, ideally active. A 1.4" compression driver with a horn from the 18Sound range is a good match. An amplifier that actually uses the power rating matters here, otherwise potential is left on the table.

What to look out for

  • 1,000 W AES into 8 Ω, Re 4.5 Ω – plan a correspondingly powerful amplifier.
  • 11 mm Xmax and Mms 105 g: built for high bass output.
  • 95 dB sensitivity – less than the WM models, more power handling in return.
  • Mounting depth 143 mm, weight 7.3 kg.
  • Bass-reflex guideline 17 l tuned to 59 Hz.

Frequently asked questions

How does the 12NLW9410 stack up against the Beyma 12P1000Nd?

Both sit at Qts 0.26 with similar resonance (42 versus 47 Hz). The Beyma has a slightly smaller Vas of 49 l compared with 55 l for the 18Sound. For the decision, a direct parameter comparison in the driver database on 42.audio is worthwhile.

Why only 95 dB at 1,000 W?

The 105 g cone mass and the long voice coil needed for 11 mm Xmax cost efficiency. In return the driver converts the high power into excursion without compressing early. With the same amplifier it delivers more clean bass output than a lighter driver with less Xmax.

Is the 12NLW9410 suitable as a subwoofer?

As a compact bass cabinet down to the f3 around 72 Hz in 17 l bass reflex, yes; for genuine deep bass a 12" driver with 55 l Vas is not the first choice. As the woofer in a loud 2-way top with a low crossover it plays to its strengths.

18Sound 12NLW9410: manufacturer, spellings and classification

18Sound, 18 Sound and Eighteensound all refer to the same manufacturer: Eighteen Sound S.r.l. of Reggio Emilia, Italy. The 12NLW9410 is a 12-inch woofer with neodymium magnet from the NLW series, available from 42.audio, 18Sound dealer in Germany, with datasheet and full specifications in the driver database.

At 42.audio you get the 18SOUND 12NLW9410 with datasheet PDF, all key data in the driver database and the enclosure calculator. More drivers from this manufacturer: Atlas 18Sound.

Thiele-Small parameters

Nominal impedance8 Ω
Resonance frequency fs42 Hz
Total Q Qts0.26
Electrical Q Qes0.27
Mechanical Q Qms6.2
Equivalent volume Vas55.0 l
Moving mass Mms105.0 g
Cone area Sd531 cm²
Linear excursion Xmax11 mm
Force factor BL21.7 Tm
DC resistance Re4.5 Ω
Voice coil inductance Le1.07 mH

Enclosure suggestion

The EBP of 156 suggests a bass-reflex enclosure. EBP = fs / Qes = 42 / 0.27

Sealed (Qtc 0.707)

Enclosure volume Vb
8.6 l
System resonance Fc
114 Hz
Cut-off frequency F3
114 Hz

Bass reflex (QB3 after Small)recommended

Enclosure volume Vb
12.9 l
Tuning frequency Fb
66 Hz
Cut-off frequency F3
79 Hz

Vb is the required net internal volume, Fb the tuning frequency of the reflex port and F3 the frequency at which the level has dropped by 3 dB. Calculated approximation after Small. A starting point for simulation, not a finished build plan.

Comparable drivers

Same size, same type, Qts within ±30 %.

Specifications

Allgemein
Manufacturer 18SOUND
Category Low Frequency
Series NLW
Magnet Neo
Impedance (Ω) 8
Power handling (W) 1000
Sensitivity (dB) 95
Frequency from (Hz) 45
Frequency to (Hz) 3000
Abmessungen & Korb
Diameter 12
Voice coil (inch) 4
Mounting depth (mm) 143
Weight (kg) 7.3
Thiele-Small-Parameter
Re (Ω) 4.5
Le (mH) 1.07
Fs (Hz) 42
Qms 6.2
Qes 0.27
Qts 0.26
Vas (l) 55
Xmax (mm) 11
BL (Tm) 21.7
Mms (kg) 0.105
Sd (m²) 0.0531
