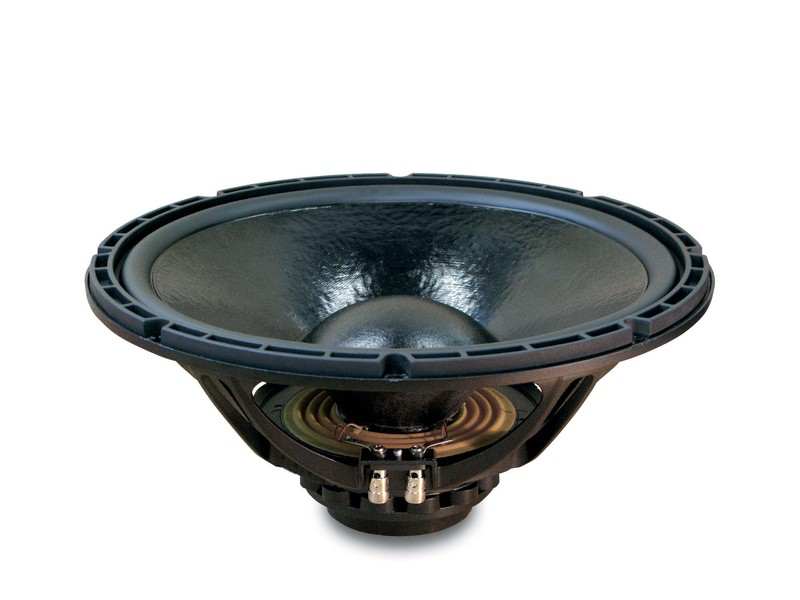

18SOUND 15NW530

https://42.audio/web/image/product.template/11843/image_1920?unique=24e070f

18SOUND (Eighteen Sound) 15NW530 — 15" / 15 inch · Woofer · Subwoofer / Bass · Neodymium
3" voice coil · 8 Ω
Part no.: 42A-CHS-TT-18S-0056

365.00 € 365.0 EUR 365.00 €

Price on request

inkl. MwSt. · Versandkostenfrei innerhalb Deutschlands
  • Manufacturer
  • Category
  • Series
  • Magnet
  • Impedance (Ω)
  • Power handling (W)
  • Sensitivity (dB)
  • Frequency from (Hz)
  • Frequency to (Hz)
  • Diameter
  • Voice coil (inch)
  • Mounting depth (mm)
  • Weight (kg)
  • Re (Ω)
  • Le (mH)
  • Fs (Hz)
  • Qms
  • Qes
  • Qts
  • Vas (l)
  • Xmax (mm)
  • BL (Tm)
  • Mms (kg)
  • Sd (m²)

This combination does not exist.

Contact Us
Wir melden uns innerhalb von 24 h – Angebot 48 h gültig.
Danke! Wir prüfen deinen Zielpreis und melden uns schnellstens.
  1. Home
  2. Driver shop
  3. Woofers
  4. 18SOUND 15NW530

18SOUND 15NW530 — 15" · Woofer

500 W AES · 96 dB Sensitivity · Frequency range 47 Hz – 3500 Hz

Technical data

  • Diameter: 15 "
  • Voice coil: 3 "
  • Power handling: 500 W AES
  • Sensitivity: 96 dB
  • Impedance: 8 Ω
  • Magnet: Neo
  • Weight: 4.4 kg
  • Mounting depth: 169 mm
  • Frequency range: 47 – 3500 Hz

Datasheet (PDF) · Manufacturer page

Series: NW · Part no.: 42A-CHS-TT-18S-0056

18Sound 15NW530: 15" neodymium woofer with 3" voice coil for vented tops

The 15NW530 is the all-rounder among 18Sound's 15" neodymium woofers. With a 3" voice coil, 500 W AES, 96 dB sensitivity and a stated range of 47 Hz to 3500 Hz it covers the typical needs of a 15" top or a compact full-range box. The 4.4 kg weight and 169 mm mounting depth make it attractive for portable cabinets.

The parameters are balanced: Fs 43 Hz, Qts 0.33, Qes 0.35, Vas 154 l, BL 22 Tm on 135 g of moving mass. The 1.4 mH inductance is normal for a 3" coil and sensibly limits the usable range at the top to the stated 3500 Hz. Linear excursion is 7.5 mm.

Use and enclosure

EBP 123 points to a vented box. The guide value from the TSP is around 96 l net, tuned to 49 Hz with an f3 near 53 Hz – an alignment that gives a 15" top decent extension without necessarily needing a subwoofer. Sealed would be about 43 l with fc 92 Hz, useful only as a mid chamber in a larger system. Port length and fine-tuning are calculated with the enclosure calculator at 42.audio.

In a 2-way box with a compression driver and horn the crossover sits well below the 3500 Hz upper limit. Matching horns are in the 18Sound horns & waveguides category; the throat size follows the driver you choose.

What to look out for

  • 500 W AES into 8 Ω (Re 5.3 Ω) with a 3" voice coil.
  • 96 dB sensitivity, 4.4 kg weight, mounting depth 169 mm.
  • Xmax 7.5 mm.
  • Qts 0.33, Vas 154 l: vented guide value 96 l, f3 near 53 Hz.

Frequently asked questions

How does the 15NW530 compare with the Beyma 15LEX1600Fe?

Both have Qts 0.33, but the Beyma has Fs 38 Hz and a much smaller Vas of 106 l, plus a ferrite magnet. The 15NW530 is lighter and, due to 154 l Vas, needs a larger box for the same tuning. Both are available in the shop.

Is 500 W power handling enough for PA?

For a top with 96 dB sensitivity, yes: an amplifier around 500 W into 8 Ω reaches high levels. With very low tuning keep an eye on the 7.5 mm excursion and add a high-pass below fb.

Is the 15NW530 also suitable for bass guitar?

The 47 Hz to 3500 Hz range and 96 dB suit a bass cabinet well. In a vented box around 96 l you get extension down to about 53 Hz, which is practical for electric bass.

18Sound 15NW530: manufacturer, spellings and classification

18Sound, 18 Sound and Eighteensound all refer to the same manufacturer: Eighteen Sound S.r.l. of Reggio Emilia, Italy. The 15NW530 is a 15-inch woofer with neodymium magnet from the NW series, available from 42.audio, 18Sound dealer in Germany, with datasheet and full specifications in the driver database.

At 42.audio you get the 18SOUND 15NW530 with datasheet PDF, all key data in the driver database and the enclosure calculator. More drivers from this manufacturer: Atlas 18Sound.

Thiele-Small parameters

Nominal impedance8 Ω
Resonance frequency fs43 Hz
Total Q Qts0.33
Electrical Q Qes0.35
Mechanical Q Qms5.81
Equivalent volume Vas154.0 l
Moving mass Mms135.0 g
Cone area Sd855 cm²
Linear excursion Xmax7.5 mm
Force factor BL22 Tm
DC resistance Re5.3 Ω
Voice coil inductance Le1.4 mH

Enclosure suggestion

The EBP of 123 suggests a bass-reflex enclosure. EBP = fs / Qes = 43 / 0.35

Sealed (Qtc 0.707)

Enclosure volume Vb
42.9 l
System resonance Fc
92 Hz
Cut-off frequency F3
92 Hz

Bass reflex (QB3 after Small)recommended

Enclosure volume Vb
79.4 l
Tuning frequency Fb
53 Hz
Cut-off frequency F3
58 Hz

Vb is the required net internal volume, Fb the tuning frequency of the reflex port and F3 the frequency at which the level has dropped by 3 dB. Calculated approximation after Small. A starting point for simulation, not a finished build plan.

Comparable drivers

Same size, same type, Qts within ±30 %.

Specifications

Allgemein
Manufacturer 18SOUND
Category Low Frequency
Series NW
Magnet Neo
Impedance (Ω) 8
Power handling (W) 500
Sensitivity (dB) 96
Frequency from (Hz) 47
Frequency to (Hz) 3500
Abmessungen & Korb
Diameter 15
Voice coil (inch) 3
Mounting depth (mm) 169
Weight (kg) 4.4
Thiele-Small-Parameter
Re (Ω) 5.3
Le (mH) 1.4
Fs (Hz) 43
Qms 5.81
Qes 0.35
Qts 0.33
Vas (l) 154
Xmax (mm) 7.5
BL (Tm) 22
Mms (kg) 0.135
Sd (m²) 0.0855
