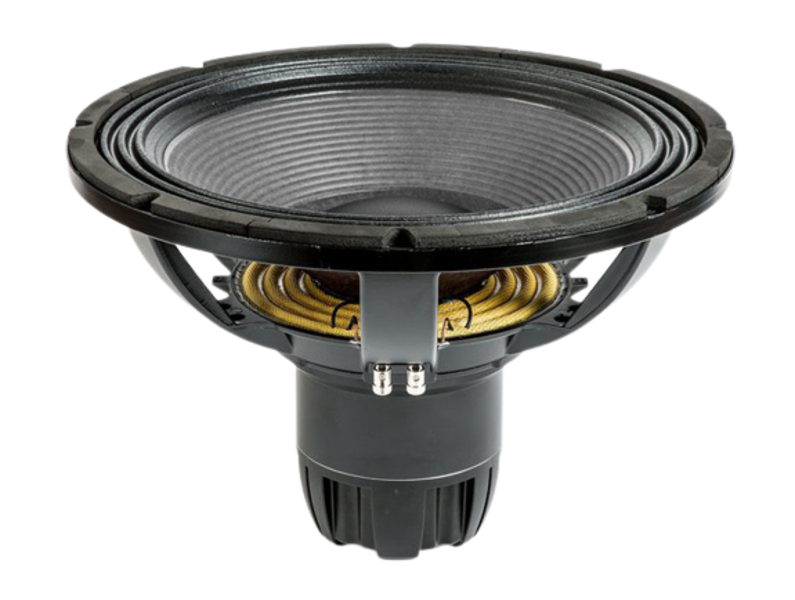

18SOUND 18NTLW5000

https://42.audio/web/image/product.template/11822/image_1920?unique=24e070f

18SOUND (Eighteen Sound) 18NTLW5000 — 18" / 18 inch · Super-Performance Woofer · Subwoofer / Bass · Neodymium · Dual-Gap
2x4.5" voice coil · 8 Ω
Part no.: 42A-CHS-TT-18S-0036

695.00 € 695.0 EUR 695.00 €

Price on request

inkl. MwSt. · Versandkostenfrei innerhalb Deutschlands
  • Manufacturer
  • Category
  • Series
  • Magnet
  • Impedance (Ω)
  • Power handling (W)
  • Sensitivity (dB)
  • Frequency from (Hz)
  • Frequency to (Hz)
  • Diameter
  • Voice coil (inch)
  • Mounting depth (mm)
  • Weight (kg)
  • Re (Ω)
  • Le (mH)
  • Fs (Hz)
  • Qms
  • Qes
  • Qts
  • Vas (l)
  • Xmax (mm)
  • BL (Tm)
  • Mms (kg)
  • Sd (m²)

This combination does not exist.

Contact Us
Wir melden uns innerhalb von 24 h – Angebot 48 h gültig.
Danke! Wir prüfen deinen Zielpreis und melden uns schnellstens.
  1. Home
  2. Driver shop
  3. Woofers
  4. 18SOUND 18NTLW5000

18SOUND 18NTLW5000 — 18" · Woofer

1800 W AES · 95 dB Sensitivity · Frequency range 30 Hz – 1800 Hz

Technical data

  • Diameter: 18 "
  • Voice coil: 4.5 "
  • Power handling: 1800 W AES
  • Sensitivity: 95 dB
  • Impedance: 8 Ω
  • Magnet: Neo
  • Weight: 12 kg
  • Mounting depth: 310 mm
  • Frequency range: 30 – 1800 Hz

Datasheet (PDF) · Manufacturer page

Series: NTLW · Part no.: 42A-CHS-TT-18S-0036

18Sound 18NTLW5000: 18" neodymium subwoofer with 17.5 mm Xmax and 95 dB

An 18" driver that works both ways: the 18NTLW5000 from 18Sound's NTLW series combines 95 dB sensitivity with 17.5 mm of linear excursion. 18Sound calls it a super-performance woofer, meaning a neodymium driver with a dual-gap motor and two 4.5" voice coils that handles 1800 W and still weighs a manageable 12 kg. Nominal impedance is 8 Ω, Re is 5.5 Ω.

The Thiele-Small parameters describe a classic reflex subwoofer: fs 32 Hz, Qts 0.32, Vas 176 l and a force factor of 31.3 Tm. With 0.295 kg of moving mass the cone is comparatively light for a long-throw driver, which explains the high efficiency. The dual-gap motor, with two air gaps and two voice coils, keeps the BL curve more uniform across the stroke than a simple overhung motor and dissipates heat through two paths – important when the full 1800 W is actually applied.

Use and enclosure

An EBP of 97 allows both vented and sealed designs. As a guideline, the bass reflex alignment gives about 100 l tuned to 37 Hz with a lower cut-off around 41 Hz – a manageable volume for an 18" touring sub. Sealed would be roughly 45 l with fc at 71 Hz, which only makes sense with active equalisation. Use the enclosure calculator at 42.audio for an exact simulation; the TSP are also in the driver database.

The working range starts at 30 Hz and extends to 1800 Hz. As a subwoofer you cross over far below that, but in a 2-way full-range cabinet it can also run up into the lower midrange. The 310 mm mounting depth belongs in the cabinet plan, as does the neodymium magnet, which means less mass in the box with the same motor strength.

What to look out for

  • 8 Ω with Re 5.5 Ω – an easy load for practically any PA amplifier, even two in parallel
  • Xmax 17.5 mm at 0.295 kg Mms: plenty of stroke without losing efficiency
  • Mounting depth 310 mm, weight 12 kg thanks to neodymium
  • Dual-gap motor with two 4.5" voice coils rated at 1800 W

Frequently asked questions

Can the 18NTLW5000 be used in a bass reflex full-range cabinet?

Yes, the response extends to 1800 Hz and Qts 0.32 suits a vented box. At 95 dB it keeps pace with compression drivers in the bass, provided the crossover sits sensibly above the lower limit.

How does it differ from the 18Sound 18LW1400?

The 18LW1400 has almost identical parameters with fs 33 Hz and Qts 0.32, but 210 l Vas against 176 l. The NTLW5000 therefore gets by with a slightly smaller box and uses neodymium instead of ferrite, saving weight.

Which amplifier makes sense?

An amplifier in the region of the 1800 W rating at 8 Ω, with a limiter and a high-pass below 30 Hz. For dual-18 cabinets, parallel operation at 4 Ω is the obvious option.

At 42.audio you get the 18SOUND 18NTLW5000 with datasheet PDF, all key data in the driver database and the enclosure calculator. More drivers from this manufacturer: Atlas 18Sound.

Thiele-Small parameters

Nominal impedance8 Ω
Resonance frequency fs32 Hz
Total Q Qts0.32
Electrical Q Qes0.33
Mechanical Q Qms8.52
Equivalent volume Vas176.0 l
Moving mass Mms295.0 g
Cone area Sd1,225 cm²
Linear excursion Xmax17.5 mm
Force factor BL31.3 Tm
DC resistance Re5.5 Ω
Voice coil inductance Le1.85 mH

Enclosure suggestion

The EBP of 97 is in the intermediate range — either works; sealed plays tighter, bass reflex deeper and louder. EBP = fs / Qes = 32 / 0.33

Sealed (Qtc 0.707)

Enclosure volume Vb
45.3 l
System resonance Fc
71 Hz
Cut-off frequency F3
71 Hz

Bass reflex (QB3 after Small)

Enclosure volume Vb
81.9 l
Tuning frequency Fb
41 Hz
Cut-off frequency F3
45 Hz

Vb is the required net internal volume, Fb the tuning frequency of the reflex port and F3 the frequency at which the level has dropped by 3 dB. Calculated approximation after Small. A starting point for simulation, not a finished build plan.

Comparable drivers

Same size, same type, Qts within ±30 %.

Specifications

Allgemein
Manufacturer 18SOUND
Category Low Frequency
Series NTLW
Magnet Neo
Impedance (Ω) 8
Power handling (W) 1800
Sensitivity (dB) 95
Frequency from (Hz) 30
Frequency to (Hz) 1800
Abmessungen & Korb
Diameter 18
Voice coil (inch) 4.5
Mounting depth (mm) 310
Weight (kg) 12
Thiele-Small-Parameter
Re (Ω) 5.5
Le (mH) 1.85
Fs (Hz) 32
Qms 8.52
Qes 0.33
Qts 0.32
Vas (l) 176
Xmax (mm) 17.5
BL (Tm) 31.3
Mms (kg) 0.295
Sd (m²) 0.1225
